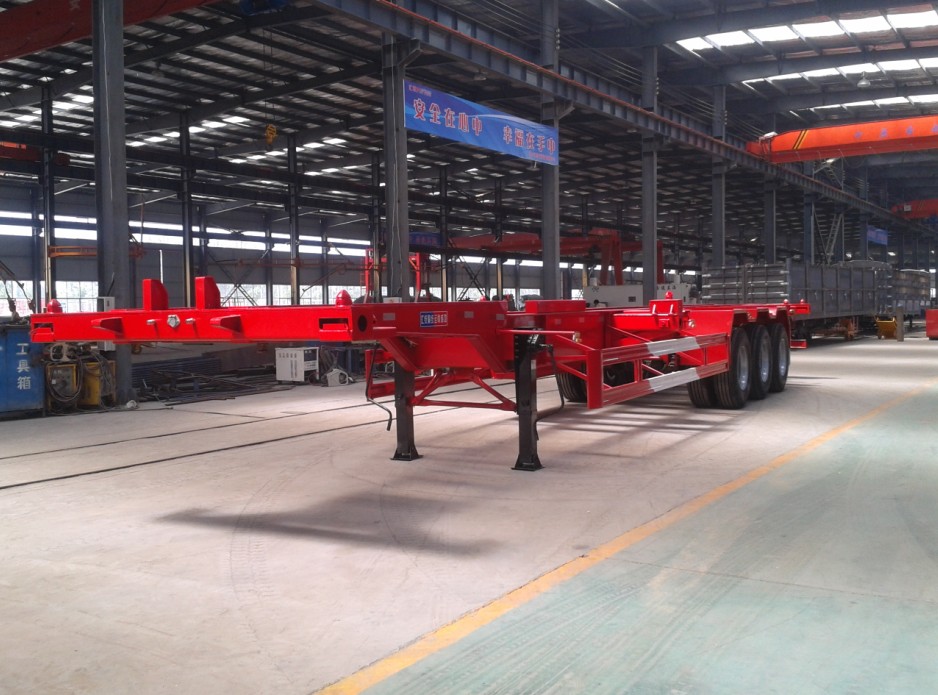

Gooseneck Skeleton Container Semi Trailer
40ft 3 axle SKELETON container semi -trailer
| DIMENSIONS | |
| Tare Weight | 5500kg |
| Payload | 40000kg |
| Total Weight | 45500kg |
| Overall Length | 12500mm |
| Overall Width | 2480mm |
| Overall Height | 1480mm |
| Wheel Track | 1840mm |
| Wheelbase | 8350mm+1300mm+1300mm |
| Main Frame | Heavy duty and extra durability designed; high tensile steel Q345B , welded by automatic Submerged-Arc processes; 500mm Height I beam, Top Flange 14mm thickness, 140 mm width, Middle flange 6mm thickness, bottom flange 16mm thickness, 140 mm width. |
| Axle | Three Units of FUWA13Ton axle |
| Suspension | One couple of mechanical Tri-axle Mechanical suspension |
| Leaf Spring | Six sets of 10-pieces 16X90mm leaf spring |
| King Pin | One unit of 2`` SAE standard bolted-in kingpin |
| Landing Gear | Two-speed , manual operating, heavy duty 28 Ton landing gear |
| Wheel Rim | Twelve units of 9.0-22.5 wheel rim |
| Tyre | Twelve units of 12R22.5 tubeless tyres. |
| Twist Lock | Twelve nos. of ISO standard twist lock for 1x20ft;2x20ft;1x40ft container, the central locks can be laid down. |
| Spare Wheel Carrier | One set of spare wheel carrier including a riser. |
| Pneumatic Braking System | A system with emergency brake and parking brake; Dual line - air brake, piggyback spring on all axles; One unit of WABCO RE 6 relay valve(or equivalent); six units of T30/30 spring brake chamber. One unit of 45L air tank; two units of standard copper air-connector. |
| Electrical System | One unit of JAEGER POWAY (or equivalent), 24V 7-pin ISO 1185 standard socket; Tail lamp with turn signal, brake light & reflector, Side lamp etc. One set of 6-core standard Cable. |
| Painting | Sand blasting processing on rust – proof protection. One coat of anticorrosive primer，two coats of finish urethane paint, Color as customer choice |
| Accessory | One tooling box without trailer tool |
