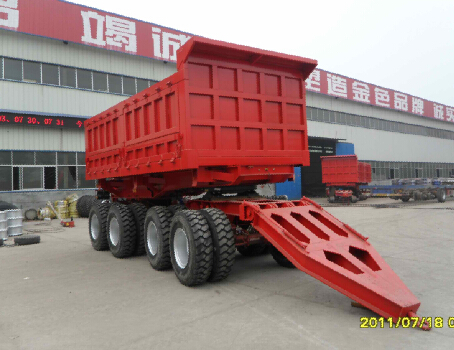

Mining Side Dump Semi Trailer
45 CBM 3 axle Mining Side Dump semi trailer Specifications
| DIMENSIONS | |
| Tare Weight | 11000kg |
| Payload | 60,000kg (max payload) |
| Total Weight | 71000kg |
| Overall Length | 10950mm |
| Overall Width | 2500mm |
| Overall Height | 3620mm |
| Wheel Track | 1840mm |
| Wheelbase | 6884mm+1360mm+1360mm |
| STANDARD SPECIFICATION | |
| Main Frame | Heavy duty and extra durability designed; high tensile steel Q345B,welded by automatic Submerged-Arc processes,500mm Height I beam, Top Flange 18mm,width 140mm; Middle Flange 10mm ; Bottom Flange 20mm,width 140mm. |
| Axle | Two units of 32 ton FUWA brand Bogie axle |
| Suspension | Bogie mechanical suspension |
| Leaf Spring | Heavy-duty leaf springs |
| Floor and side board | Front and side board 8mm thickness, floor 8mm thickness ,with reinforced inclined stiffeners 10 mm |
| King Pin | One unit of 3.5'`` SAE standard bolted-in kingpin |
| Landing Gear | Two-speed, manual operating, heavy duty landing gear |
| Cylinder | HYVA 8130 hydraulic cylinder |
| Wheel Rim | Sixteen units of 8.5-20 wheel rim |
| Tyre | Sixteen units of 12.00R20 triangle Brand radial tyres |
| Spare Wheel Carrier | One set of spare wheel carrier including a riser. |
| Pneumatic Braking System | A system with emergency brake and parking brake; Dual line - air brake, piggyback spring on all axles; One unit of WABCO RE 6 relay valve(or equivalent); six units of T30/30 spring brake chamber, two unit of 45L air tank; two units of standard copper air-connector. |
| Electrical System | One unit of JAEGER POWAY (or equivalent), 24V 7-pin ISO 1185 standard socket; Tail lamp with turn signal, brake light & reflector, Side lamp etc.One set of 6-core standard Cable. |
| Painting | Sand blasting processing on rust – proof protection. One coat of anticorrosive primer ,two coats of finish urethane paint, Color as customer choice |
| Accessory | One tool box |
