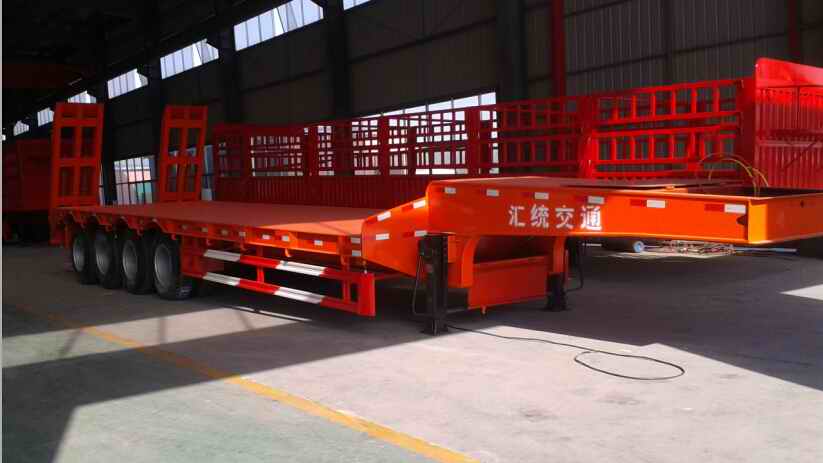

80 Ton 4 axle Lowbed Semi Trailer
80 ton 16m 4 axle Lowbed Semi Trailer
| DIMENSIONS | |
| Tare Weight | 11500kg |
| Payload | 60000kg |
| Total Weight | 71500kg |
| Overall Length | 16000mm |
| Overall Width | 3000mm |
| Overall Height | 3110mm |
| Wheel Track | 2040mm |
| Wheelbase | 8550mm+1300mm+1300mm+1300mm |
| STANDARD SPECIFICATION | |
| Main Frame |
Heavy duty and extra durability designed; high tensile steel Q345B,welded by automatic Submerged-Arc processes 500mm Height I beam, Top Flange 20mm,width 140mm; Middle Flange 12mm ; Bottom Flange 20mm,width 140mm |
| Floor | Steel Sheet 3mm thickness |
| Axle | Four Units of FUWA 16 Ton Axle |
| Suspension | One couple of underslung mechanical tri-Axle suspension |
| Leaf Spring | Six sets of 10-pieces 13x90 mm leaf spring |
| King Pin | One unit of 3.5``(90#) SAE standard bolted kingpin |
| Landing Gear | Two-speed, manual operating, 28 ton heavy duty Jinhua Brand Landing Gear |
| Wheel Rim | Twelve units of 8.5-20 wheel rim |
| Tyre | Twelve units of 12.00R20 Radial tyre |
| Spare Wheel Carrier | One set of spare wheel carrier including a riser. |
| Pneumatic Braking System |
A system with emergency brake and parking brake; Dual line - air brake, piggyback spring on all axles; Two units of WABCO RE 4 relay valve (or equivalent); sixunits of T30/30 spring brake chamber; two units of T30 spring brake chamber; Two units of 45L air tanks; two units of standard copper air-connector. With ABS braking System |
| Electrical System | One unit of JAEGER POWAY(or equivalent), 24V 7-pin ISO 1185 standard socket; Standard Tail lamp with turn signal, brake light & reflector, Side lamp etc. One set of 6-core standard Cable. |
| Painting | Sand blasting processing on rust – proof protection. One coat of anticorrosive primer, two coats of finish urethane paint, Color as customer choice |
| Accessory | One tool box with a set of standard trailer tool |
