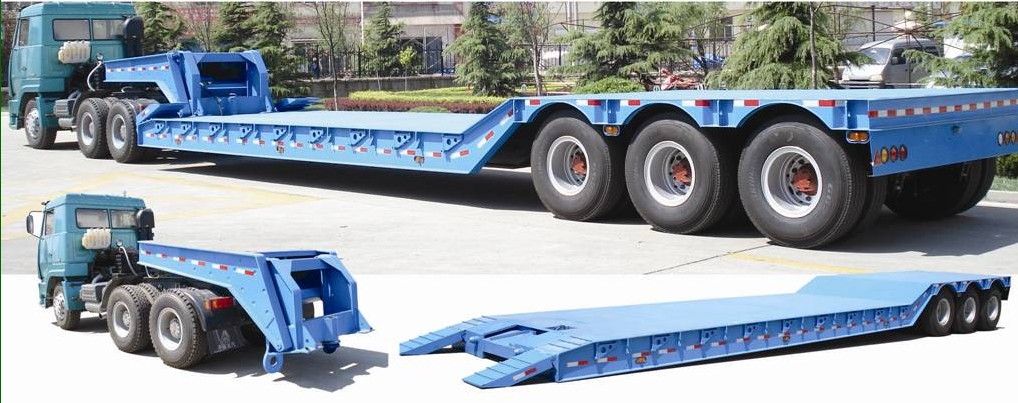

Front Loading- Detachable Gooseneck 80 Ton Lowbed Semi Trail
Front Loading- Detachbale Gooseneck 80 Ton Lowbed Semi Trailer
| DIMENSIONS | |
| Tare Weight | 15000kg |
| Payload | 80000kg |
| Total Weight | 95000kg |
| Overall Length | 18000mm |
| Overall Width | 35000mm(side bracket extension optional) |
| Overall Height | 1700mm |
| Loading Platform Height | 1130mm |
| Wheelbase | 12550mm+1220mm+1220mm |
| STANDARD SPECIFICATION | |
| Loading way | Front Loading |
| Goose- neck Type | Detachable Goose-neck |
| Main Frame |
Heavy duty and extra durability designed; high tensile steel Q345B,welded by automatic Submerged-Arc processes 500mm Height I beam Top Flange 20mm, width 140mm; double heavy-duty reinforcement middle Flange 12mm+12mm; Bottom Flange 20mm, width 140mm, rear platform straight board without slope. |
| Floor | Steel Sheet 5mm thickness |
| Axle | Three units of 20 ton axle |
| Suspension | Tri-axle heavy-duty Mehcanical suspension |
| King Pin | One unit of 3.5`` SAE standard welded kingpin |
| Landing Gear | Two-speed , manual operating, heavy duty landing gear |
| Wheel Rim | Twelve two units of 6.5-20 wheel rim |
| Tyre | Twelve units of 8.25R20 Radial tyre |
| Spare Wheel Carrier | One set of spare wheel carrier including a riser. |
| Pneumatic Braking System | A system with emergency brake and parking brake; Dual line - air brake, piggyback spring on all axles; Two units of WABCO RE 6 relay valve; six units of T30/30 spring brake chamber; Two units of 45L air tanks; two units of standard copper air-connector. |
| Electrical System | One unit of JAEGER POWAY, 24V 7-pin ISO 1185 standard socket; Standard Tail lamp with turn signal, brake light & reflector, Side lamp etc. One set of 6-core standard Cable. |
| Painting | Sand blasting processing on rust – proof protection. One coat of anticorrosive primer, two coats of finish urethane paint, Color as customer choice |
| Accessory | One tool box with a set of standard trailer tool |
